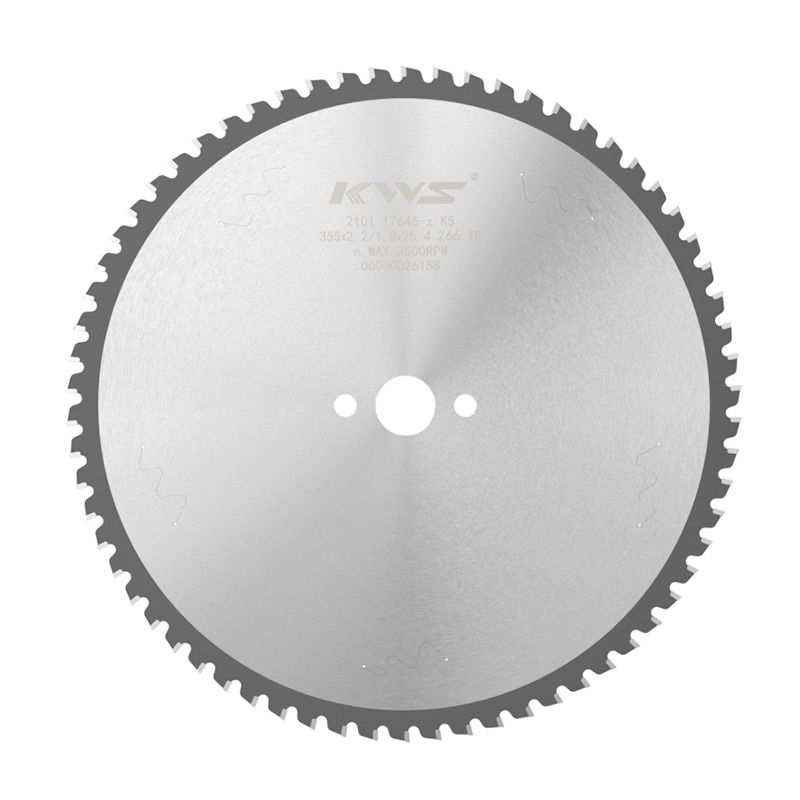

Home > Products > Cold Saw for Cutting Steel > Cold Saw for Manual Device > KWS Cold Saw for Manual Device

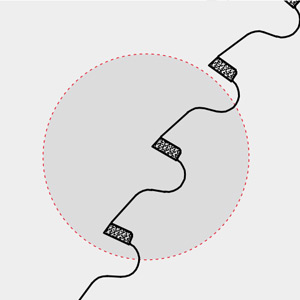

·Teeth Shape·
·Characteristics·
1. Low cost
2. Convenient and flexible cutting
3. High cutting performance and difference
Production Information
| Application | For various middle&low carbon steel cutting |
| Equipment | Portable circular saw machine |
| RPM | N=700rpm--1300rpm |
| Cutting Material | Channel steel, angle steel, rectangular tube, steel rod, copper and copper alloys, aluminum and aluminum alloys, aluminum-wood composite materials, etc. (excluded stainless steel) |
| Tips | Cermet alloy |
| Features | 1. Low cost 2. Convenient and flexible cutting 3. High cutting performance and difference |
Cutting Amount and Cutting Speed
■ Cutting Amount Per Tooth(fz)
| Fz (mm/blade)=F/N*Z |
| Fz: The amount of cut per tooth |
| F: Feed speed (mm/min) |
| N: Equipment spindle speed (rpm) |
| Z: Number of teeth |
■ Recommended Parameters
| Bar Fz=0.04~0.07 (mm/blade) |
Pipe Fz=0.03~0.05 (mm/blade) |
■ Cutting Speed (Saw Blade Line Speed) (v)
| V(m/min)=π*D*N/1000 |
| V: Cutting line speed (m/min) |
| D: Outer diameter (mm) |
| N: Equipment spindle speed (rpm) |
■ Recommended Parameters
| Medium and low carbon steel V=100~130 (m/min) |
| High carbon, alloy steel V=70~100 (m/min) |
Stock: Yes No
|
