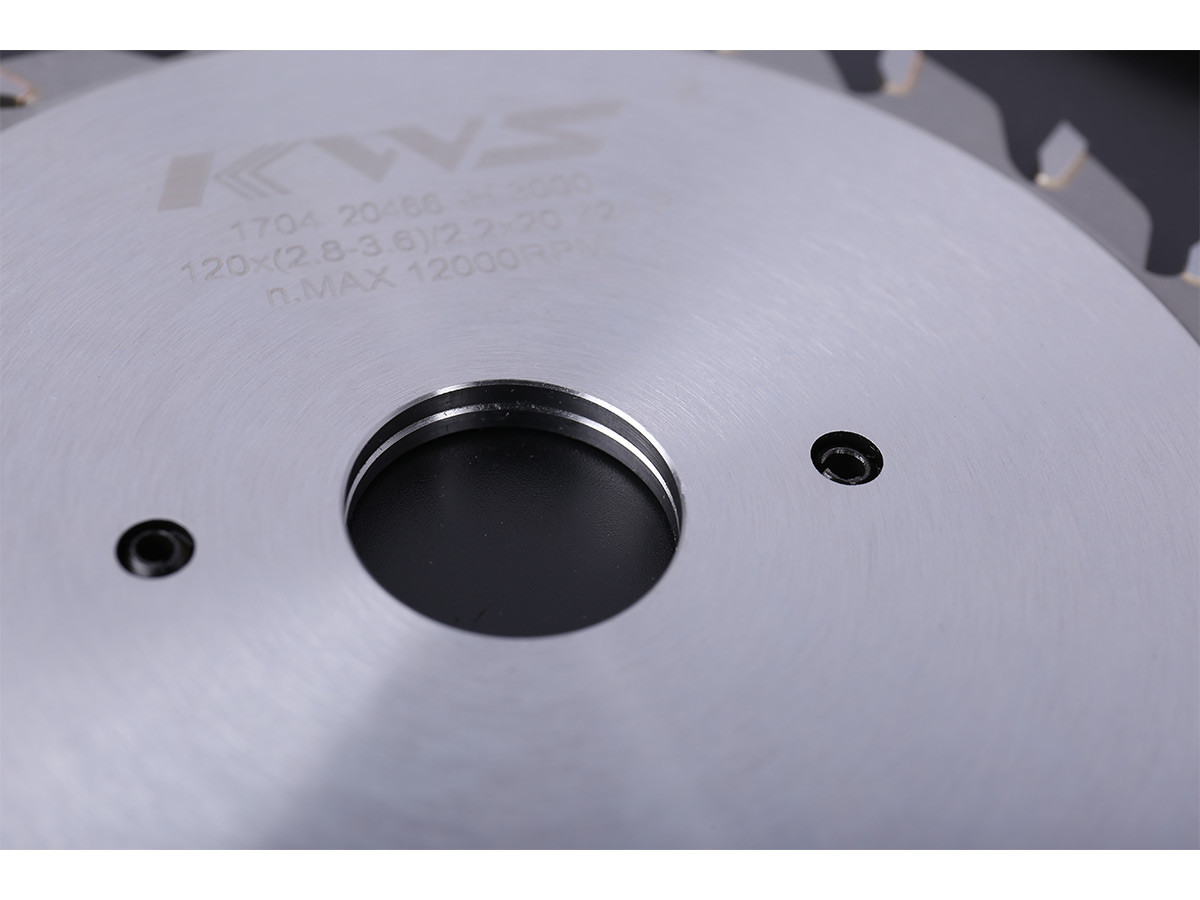

KWS TCT Adjustable Scoring Saw Blade for Table Saw

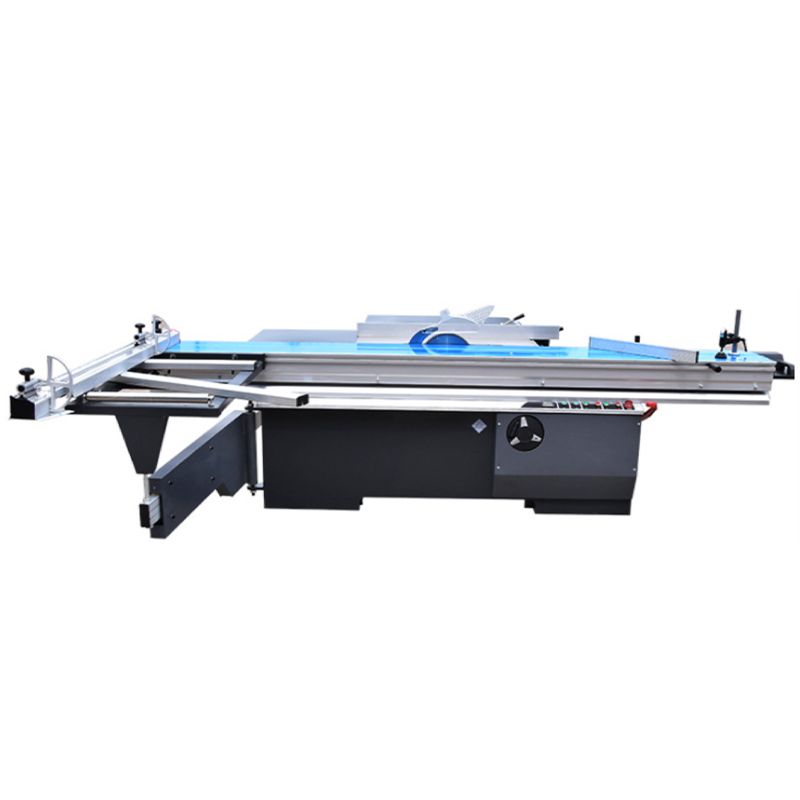

Machines: Precise table saw, horizontal panel saw machine (able to change pre-scoring width to match main saw).

Application: Suitable for scoring the laminated panels (with paper or plastic cover) such as MDF, chipboard, fireproof materials etc.

Features: New CP technology, Top flat carbide tipped. Cutting width can be adjusted by +/- spacers.

Advantages: High grade of raw materials (European steel plate plus carbide tips).

Material:


MDFArtificial BoardChipboard
MDFArtificial BoardChipboard

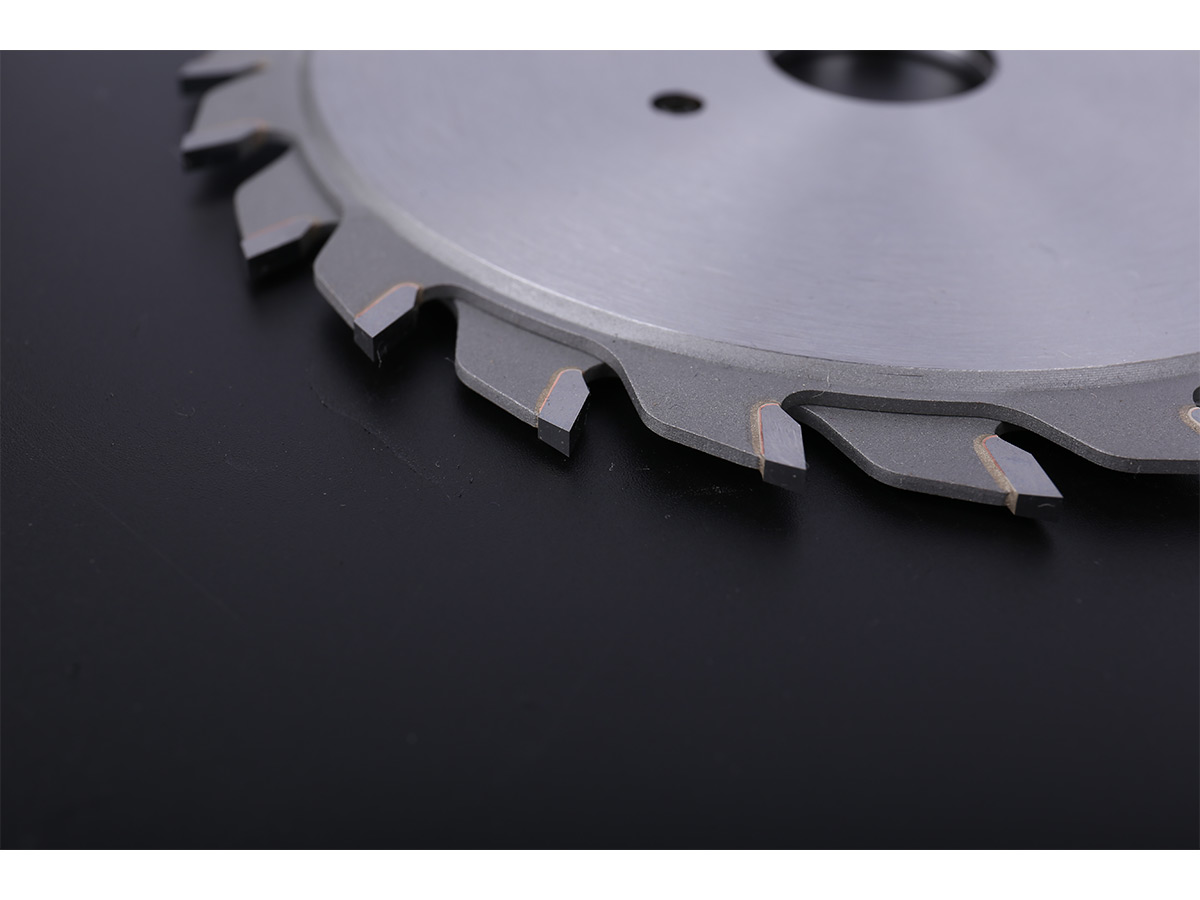

KWS TCT Adjustable Scoring Saw Blade for Table Saw

1. Product Introduction

KWS TCT Adjustable Scoring Saw Blade is specially designed for precision panel cutting applications on woodworking table saws. Featuring a double-blade parallel structure, this adjustable scoring saw blade is used to create a precise pre-cutting groove on the bottom surface of wood panels before the main saw blade completes the cutting process.

By scoring the panel surface in advance, the TCT adjustable scoring blade effectively minimizes chipping, splintering, and edge breakout, especially when processing veneered boards and laminated panels. It helps achieve clean, smooth cutting edges on both sides of the workpiece, reducing the need for secondary finishing.

Manufactured with high-quality tungsten carbide (TCT) teeth and precision grinding technology, this woodworking scoring saw blade delivers stable operation, excellent wear resistance, and consistent scoring performance.

With an adjustable scoring width of 2.8–3.6 mm, it provides flexible cutting solutions for different panel thicknesses and woodworking requirements.


2.Product Specifications

Product NameTCT Adjustable Scoring Saw Blade
BrandKWS
Blade TypeDouble Scoring Saw Blade
Tooth MaterialTungsten Carbide (TCT)
Blade StructureDouble Parallel Blade Design
Applicable MachineTable Saw
ApplicationPanel Pre-Scoring and Grooving
Scoring Width2.8–3.6 mm
Recommended Speed6,000–12,000 RPM
Feed Speed10–80 m/min
Cutting MaterialsParticle Board, MDF, Plywood, Veneered Panels

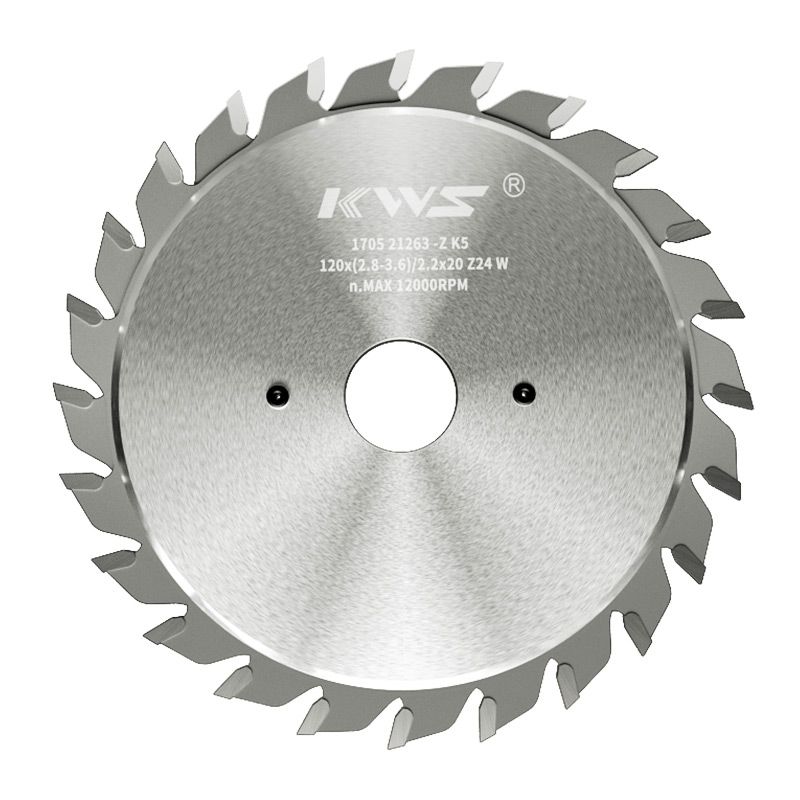

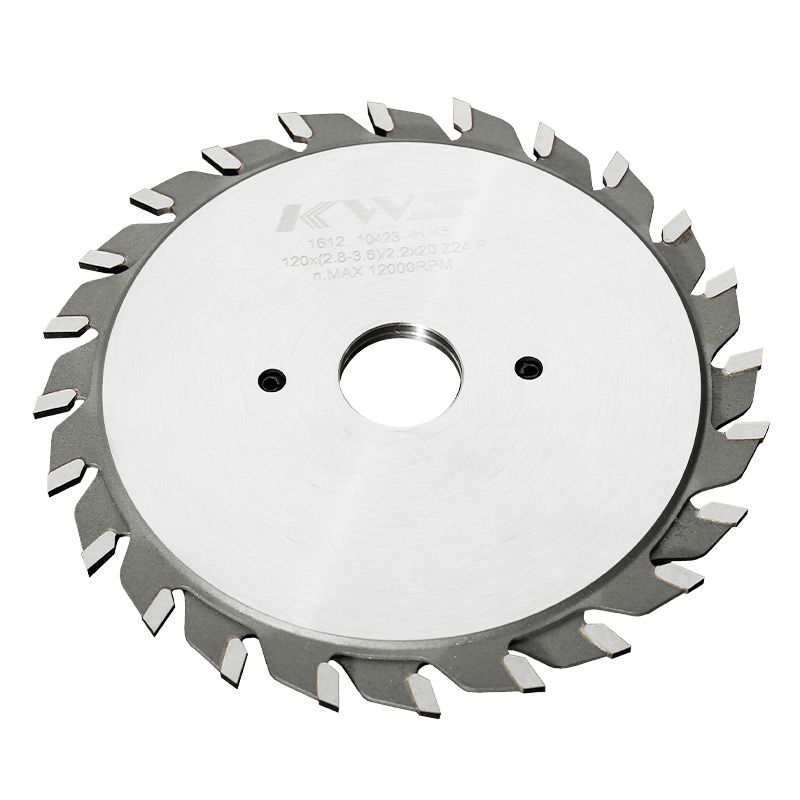

TCT Adjustable Scoring Saw Blade

TCT Adjustable Scoring Saw Blade

TCT Adjustable Scoring Saw Blade

3. Key Features & Advantages

1. Anti-Chipping Performance

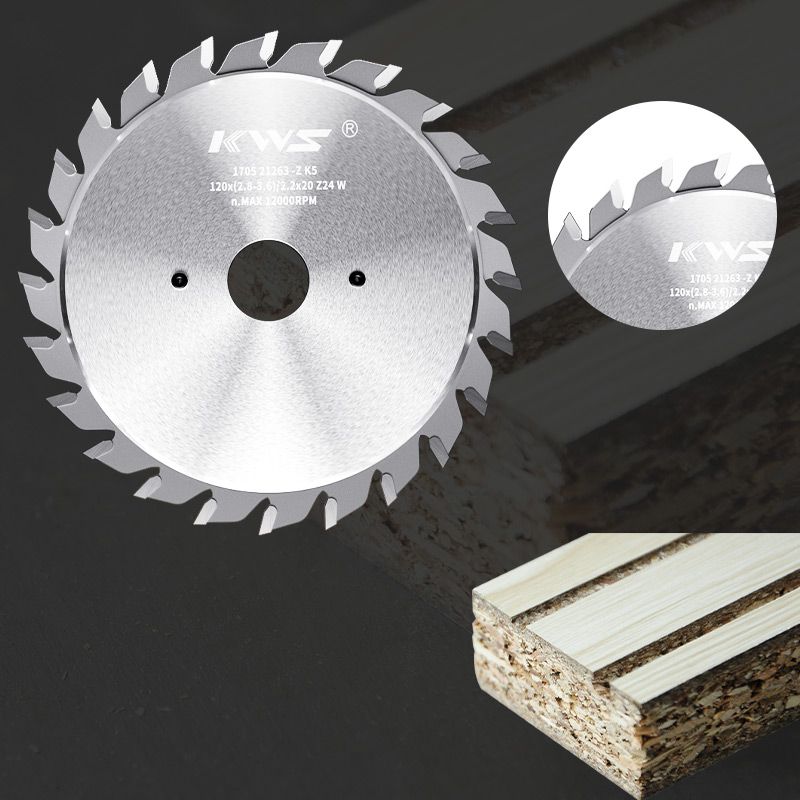

The double-blade scoring design creates a preliminary groove before the main saw blade cuts through the panel. It effectively reduces bottom-edge chipping, splintering, and breakout, ensuring cleaner cutting results on laminated and veneered boards.

2. Premium Tungsten Carbide Teeth

Made with high-quality tungsten carbide (TCT) cutting tips, this TCT scoring saw blade offers excellent hardness, wear resistance, and long service life. It maintains stable cutting performance during continuous woodworking operations.

3. Precision Flat Grinding

Advanced flat grinding technology ensures a smooth and flat blade surface. This improves scoring stability, reduces vibration, and helps maintain consistent cutting accuracy.

4. Stable Structural Design

The optimized large negative hook angle design enhances structural stability during operation. It helps minimize blade deflection and unwanted movement, delivering smoother and more reliable scoring performance.

5. High-Precision Bore Processing

Precision-machined mounting holes ensure accurate installation and a secure fit on compatible table saw equipment. This contributes to stable rotation and reliable operating performance.

6. Optimized Tooth Arrangement

The scientifically arranged carbide teeth provide efficient chip clearance and smooth cutting action. Improved chip evacuation helps reduce cutting resistance and supports consistent scoring quality.


4. Applications & Compatible Materials

The KWS TCT Adjustable Scoring Saw Blade is designed for precision panel processing and edge-quality improvement in woodworking applications.

Compatible Materials:

Particle Board

MDF (Medium-Density Fiberboard)

Multi-Layer Plywood

Veneered Panels

Solid Wood Veneered Boards

Laminated Wood Panels

Typical Applications:

Panel furniture manufacturing

Custom furniture production

Cabinet and wardrobe manufacturing

Precision panel sizing

Veneered board cutting

Woodworking panel pre-scoring

When used together with the main saw blade on a compatible table saw, the adjustable scoring blade helps prevent edge breakout and improves the overall quality of panel cutting.


5. Installation & Adjustment Guide

Correct installation and adjustment are important for maximizing the performance of a TCT adjustable scoring saw blade.

Step 1: Blade Alignment

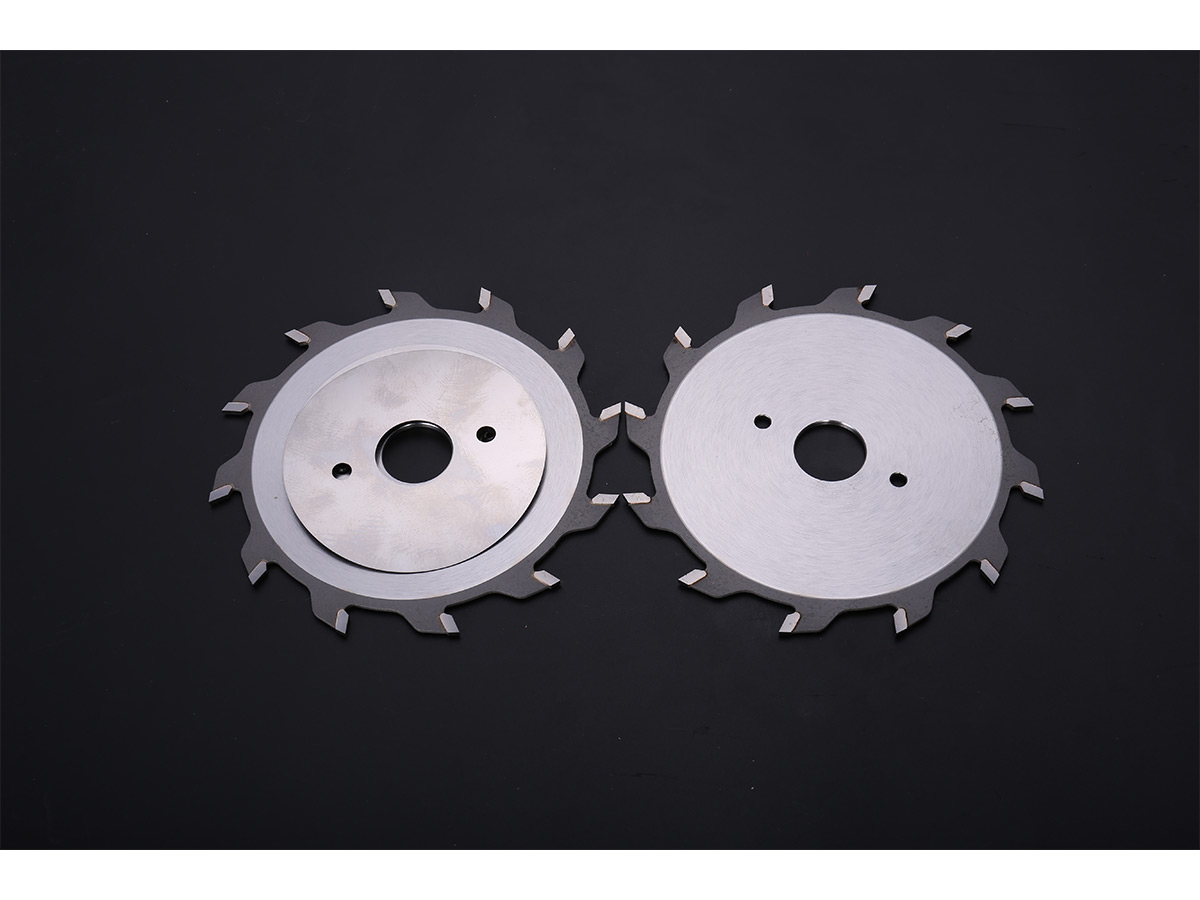

Install the two scoring blades in parallel and ensure that they are properly aligned.

Step 2: Scoring Width Adjustment

Adjust the spacing between the two blades using precision spacers according to the required scoring width and panel thickness. The adjustable scoring width ranges from 2.8 mm to 3.6 mm.

Step 3: Manual Rotation Check

After installation, manually rotate the blade assembly to check for interference, friction, or abnormal contact between the blades.

Step 4: Trial Operation

Perform a test cut at a controlled operating speed. Check whether the scoring groove is shallow, uniform, and properly aligned with the main saw blade.

Step 5: Production Cutting

Once the scoring results meet the required standards, proceed with regular production.


6. Why Choose KWS TCT Adjustable Scoring Saw Blades?

KWS focuses on manufacturing high-performance woodworking cutting tools for professional industrial applications.

Our TCT adjustable scoring saw blades combine carefully selected carbide materials, precision grinding, and optimized structural design to deliver reliable performance in demanding panel cutting operations.

KWS Manufacturing Advantages:

High-quality tungsten carbide cutting materials

Precision grinding and machining processes

Stable blade structure and accurate dimensions

Consistent scoring performance

Customization options for different machines and applications

Professional technical support and factory-direct supply

Whether you manufacture cabinets, wardrobes, or custom panel furniture, KWS provides reliable TCT scoring saw blade solutions to improve cutting quality and production efficiency.


7. Frequently Asked Questions (FAQ)

Q1: What is a TCT adjustable scoring saw blade used for?

A TCT adjustable scoring saw blade is used to create a shallow pre-cutting groove on the bottom surface of wood panels before the main saw blade completes the cut. It helps reduce chipping and splintering, especially when cutting laminated, veneered, or coated boards.

Q2: What machines are compatible with an adjustable scoring saw blade?

An adjustable scoring saw blade is commonly used on compatible woodworking table saws, sliding table saws, and panel saw machines equipped with a scoring blade assembly.

Q3: What materials can a TCT scoring saw blade cut?

It is suitable for particle board, MDF, multi-layer plywood, veneered panels, and other wood-based panels that require clean and precise cutting edges.

Q4: What is the adjustable scoring width of this blade?

The KWS TCT adjustable scoring saw blade supports a scoring width adjustment range of 2.8–3.6 mm. The width can be adjusted using precision spacers to match the main saw blade kerf.

Q5: Why is a double scoring saw blade better for panel cutting?

The double-blade structure creates a controlled groove on the panel surface before the main cutting operation. This helps prevent bottom-edge breakout and improves the finish quality of laminated and veneered panels.

Q6: How can I improve the cutting performance of a scoring saw blade?

Proper blade alignment, accurate spacer adjustment, suitable rotational speed, and regular inspection are essential. The scoring blade should also be correctly matched with the main saw blade to achieve consistent cutting results.

Q7: Can KWS customize TCT adjustable scoring saw blades?

Yes. KWS can provide customized scoring saw blade solutions according to machine compatibility, cutting requirements, blade dimensions, and customer specifications.


Stock: Yes No


No.

D

d

B

Z

TF

K5

3000

1

70

20

2.8/3.6

8+8

P

2

80

20

2.8/3.6

10+10

P

3

100

20/22

2.8/3.6

24

P

4

120

20/22

2.8/3.6

24

P
