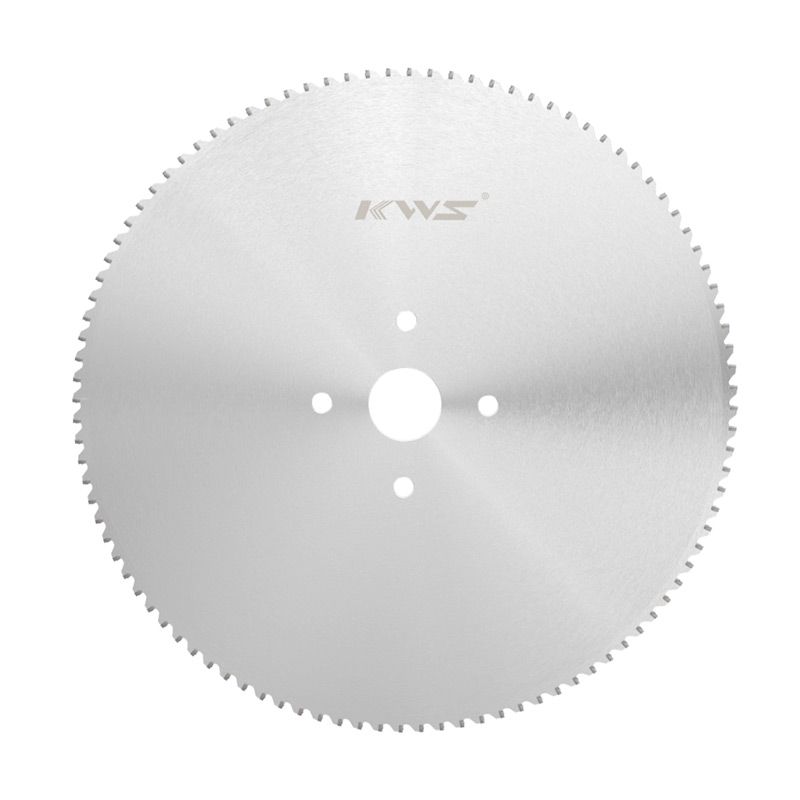

Cold Saw for Pipes Cutting

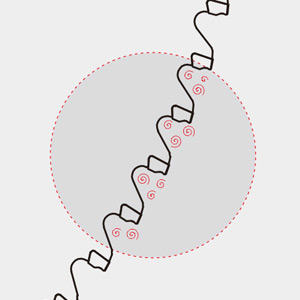

·Teeth Type·

Cold Saw for Pipes Cutting


·Characteristics·

1. Special anti-vibration teeth

2. Special angle design

3. Little resonance

4. Strong impact resistance

5. Reliable performance

Production Information

ApplicationFor pipes cutting
EquipmentHigh precise cold saw machine
Recommended linear velocitySZ=0.040mm--0.070mm
MaterialTubular materials stainless steel excluded
TipsCermet alloy
Features1. Special anti-vibration teeth
2. Special angle design
3. Little resonance
4. Strong impact resistance
5. Reliable performance


Cutting Amount and Cutting Speed

■ Cutting Amount Per Tooth(fz)

Fz (mm/blade)=F/N*Z
Fz: The amount of cut per tooth
F: Feed speed (mm/min)
N: Equipment spindle speed (rpm)
Z: Number of teeth


Recommended Parameters

Bar Fz=0.04~0.07 (mm/blade)

Pipe Fz=0.03~0.05 (mm/blade)


Cutting Speed (Saw Blade Line Speed) (v)

V(m/min)=π*D*N/1000
V: Cutting line speed (m/min)
D: Outer diameter (mm)
N: Equipment spindle speed (rpm)


Recommended Parameters

Medium and low carbon steel V=100~130 (m/min)
High carbon, alloy steel V=70~100 (m/min)


Specification

Pin Hole/pin HoleBore
4/9/50, 4/11/6332.00
4/11/63, 4/11/90, 2/12/65, 2/15/8040.00
4/11/90, 4/16/80, 4/21/9050.00


Cold Saw for Pipes Cutting

Stock: Yes No


No.

D

d

B

Z

Type

1

250

32

2

120

250*32*2.0*120

2

285

32

2

54

285*32*2.0*54

3

285

32

2

60

285*32*2.0*60

4

285

32

2

80

285*32*2.0*80

5

285

32

2

100

285*32*2.0*100

6

285

32

2

120

285*32*2.0*120

7

315

32

2.25

60

315*32*2.25*60

8

315

32

2.25

72

315*32*2.25*72

9

315

32

2.25

80

315*32*2.25*80

10

315

32

2.25

100

315*32*2.25*100

11

315

32

2.25

120

315*32*2.25*120

12

315

32

2.25

140

315*32*2.25*140

13

360

40

2.6

60

360*40*2.6*60

14

360

40

2.6

72

360*40*2.6*72

15

360

40

2.6

80

360*40*2.6*80

16

360

40

2.6

100

360*40*2.6*100

17

360

40

2.6

120

360*40*2.6*120

18

380

40

2.6

60

380*40*2.6*60

19

400

50

2.7

80

400*50*2.7*80

20

400

50

2.7

100

400*50*2.7*100

21

425

50

2.7

40

425*50*2.7*40

22

425

50

2.7

60

425*50*2.7*60

23

425

50

2.7

80

425*50*2.7*80

24

425

50

2.7

100

425*50*2.7*100

25

460

50

2.7

40

460*50*2.7*40

26

460

50

2.7

60

460*50*2.7*60

27

460

50

2.7

72

460*50*2.7*72

28

460

50

2.7

80

460*50*2.7*80

29

460

50

2.7

100

460*50*2.7*100

30

460

50

2.7

120

460*50*2.7*120

31

458

50

2.7

60

485*50*2.7*60

32

485

50

2.7

72

485*50*2.7*72

33

485

50

2.7

80

485*50*2.7*80

34

485

50

2.7

100

485*50*2.7*100

35

520

50

3

60

520*50*3.0*60

36

520

50

3

72

520*50*3.0*72

37

520

50

3

80

520*50*3.0*80

38

560

50

3

60

560*50*3.0*60

39

630

80

3.4

60

630*80*3.4*60

40

630

80

3.4

72

630*80*3.4*72

41

630

80

3.4

80

630*80*3.4*80

42

630

80

3.4

100

630*80*3.4*100
