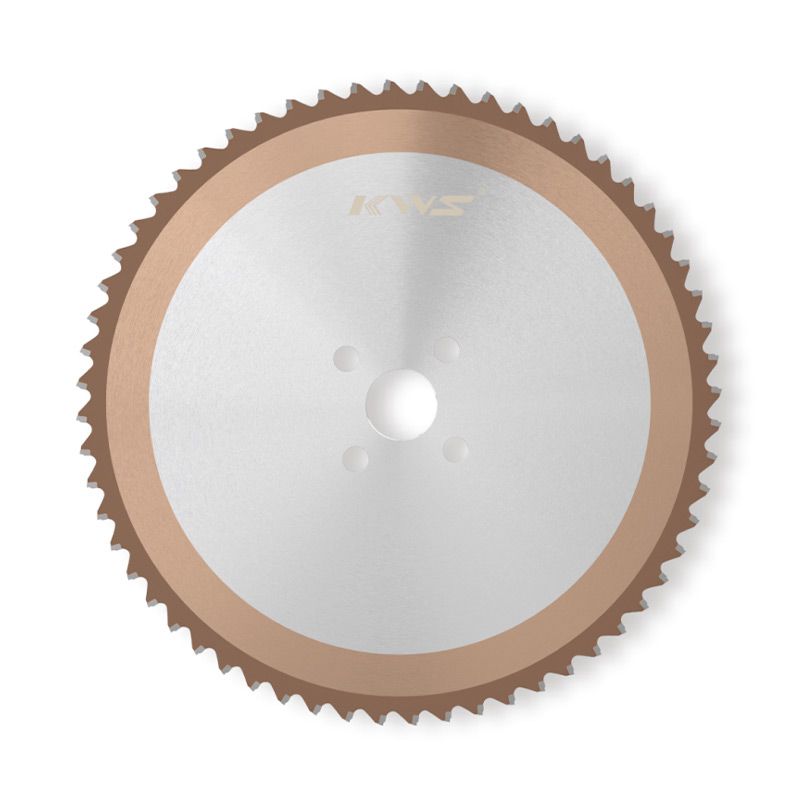

KWS Cold Saw for Stainless Steel Cutting

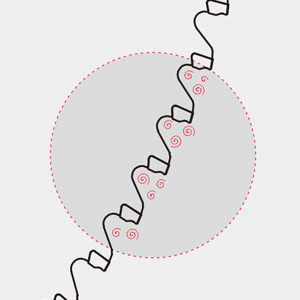

·Teeth Type·

Cold Saw for Stainless Steel Cutting


·Characteristics·

1. PVD coating

2. Clean cutting

3. High wear resistance coating surface

4. Durable

Production Information

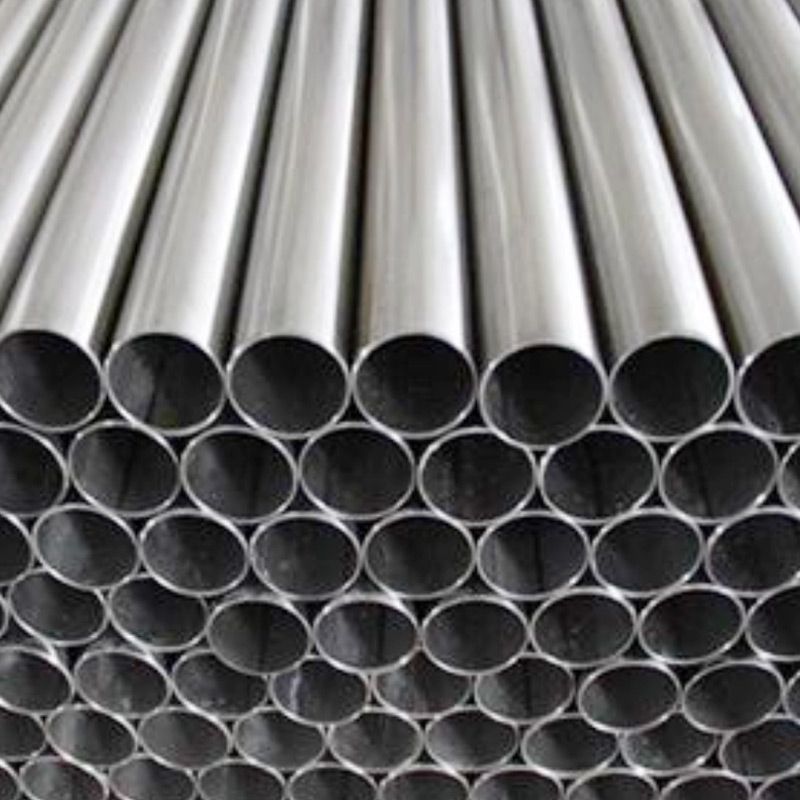

ApplicationFor stainless steel cutting
EquipmentHigh precise cold saw machine
Recommended linear velocityFZ=0.03mm--0.050mm
MaterialSUS304 stainless steel
TipsCermet alloy+PVD coating
Features

1. PVD coating

2. Clean cutting

3. High wear resistance coating surface

4. Durable


Cutting Amount and Cutting Speed

Cutting Amount Per Tooth(fz)

Fz (mm/blade)=F/N*Z
Fz: The amount of cut per tooth
F: Feed speed (mm/min)
N: Equipment spindle speed (rpm)
Z: Number of teeth


Recommended Parameters

Bar Fz=0.04~0.07 (mm/blade)

Pipe Fz=0.03~0.05 (mm/blade)


Cutting Speed (Saw Blade Line Speed) (v)

V(m/min)=π*D*N/1000
V: Cutting line speed (m/min)
D: Outer diameter (mm)
N: Equipment spindle speed (rpm)


Recommended Parameters

Medium and low carbon steel V=100~130 (m/min)
High carbon, alloy steel V=70~100 (m/min)


Specification

Pin Hole/pin HoleBore
4/9/50, 4/11/6332.00
4/11/63, 4/11/90, 2/12/65, 2/15/8040.00
4/11/90, 4/16/80, 4/21/9050.00


Cold Saw for Stainless Steel Cutting

Stock: Yes No


No.

D

d

B

Z

Type

1

285

32

2

120

285*32*2.0*120

2

315

32

2.25

60

315*32*2.25*60

3

315

32

2.25

72

315*32*2.25*72

4

315

32

2.25

80

315*32*2.25*80

5

315

32

2.25

100

315*32*2.25*100

6

315

32

2.25

120

315*32*2.25*120

7

315

32

2.25

140

315*32*2.25*140

8

360

40

2.6

60

360*40*2.6*60

9

360

40

2.6

72

360*40*2.6*72

10

360

40

2.6

80

360*40*2.6*80

11

360

40

2.6

100

360*40*2.6*100

12

360

40

2.6

120

360*40*2.6*120

13

380

40

2.6

60

380*40*2.6*60

14

380

40

2.6

72

380*40*2.6*72

15

380

40

2.6

80

380*40*2.6*80

16

380

40

2.6

100

380*40*2.6*100

17

400

50

2.7

50

400*50*2.7*50

18

400

50

2.7

60

400*50*2.7*60

19

400

50

2.7

80

400*50*2.7*80

20

400

50

2.7

100

400*50*2.7*100

21

425

50

2.7

40

425*50*2.7*40

22

425

50

2.7

60

425*50*2.7*60

23

425

50

2.7

80

425*50*2.7*80

24

425

50

2.7

100

425*50*2.7*100

25

460

50

2.7

40

460*50*2.7*40

26

460

50

2.7

60

460*50*2.7*60

27

460

50

2.7

72

460*50*2.7*72

28

460

50

2.7

80

460*50*2.7*80

29

460

50

2.7

100

460*50*2.7*100

30

460

50

2.7

120

460*50*2.7*120

31

458

50

2.7

60

485*50*2.7*60

32

485

50

2.7

72

485*50*2.7*72

33

485

50

2.7

80

485*50*2.7*80

34

485

50

2.7

100

485*50*2.7*100

35

520

50

3

60

520*50*3.0*60

36

520

50

3

72

520*50*3.0*72

37

520

50

3

80

520*50*3.0*80

38

560

50

3

60

560*50*3.0*60

39

630

80

3.4

60

630*80*3.4*60

40

630

80

3.4

72

630*80*3.4*72

41

630

80

3.4

80

630*80*3.4*80

42

630

80

3.4

100

630*80*3.4*100
