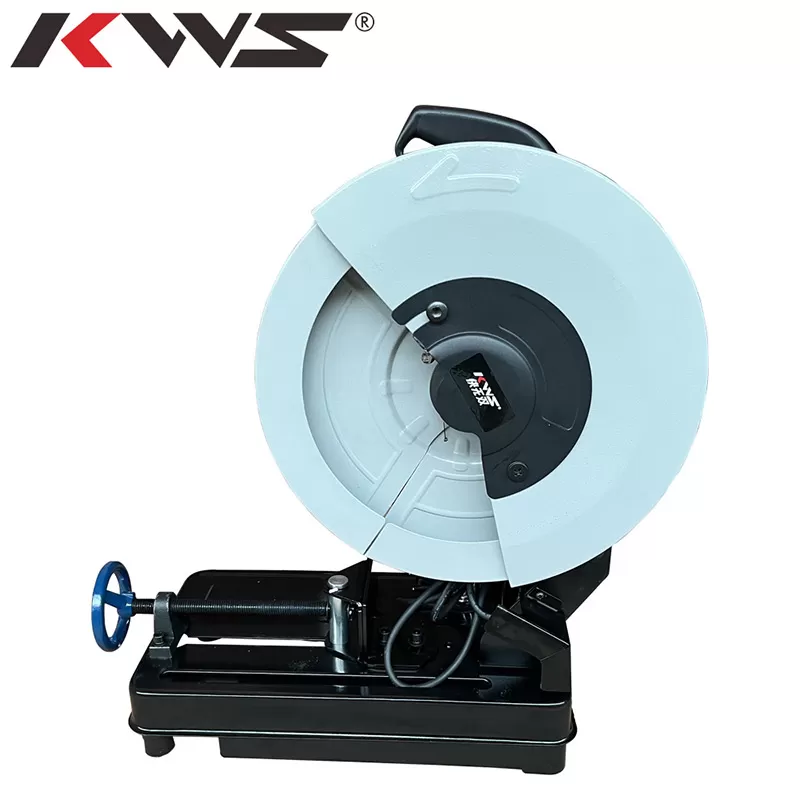

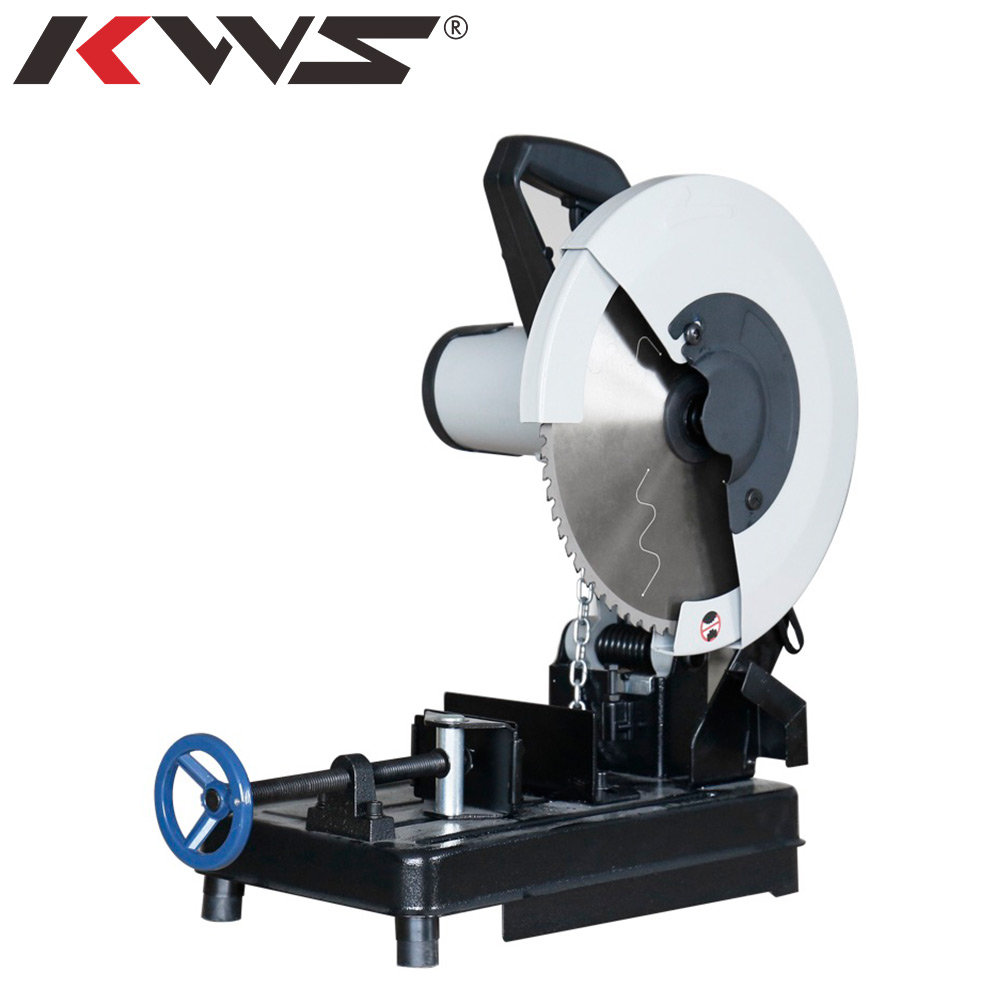

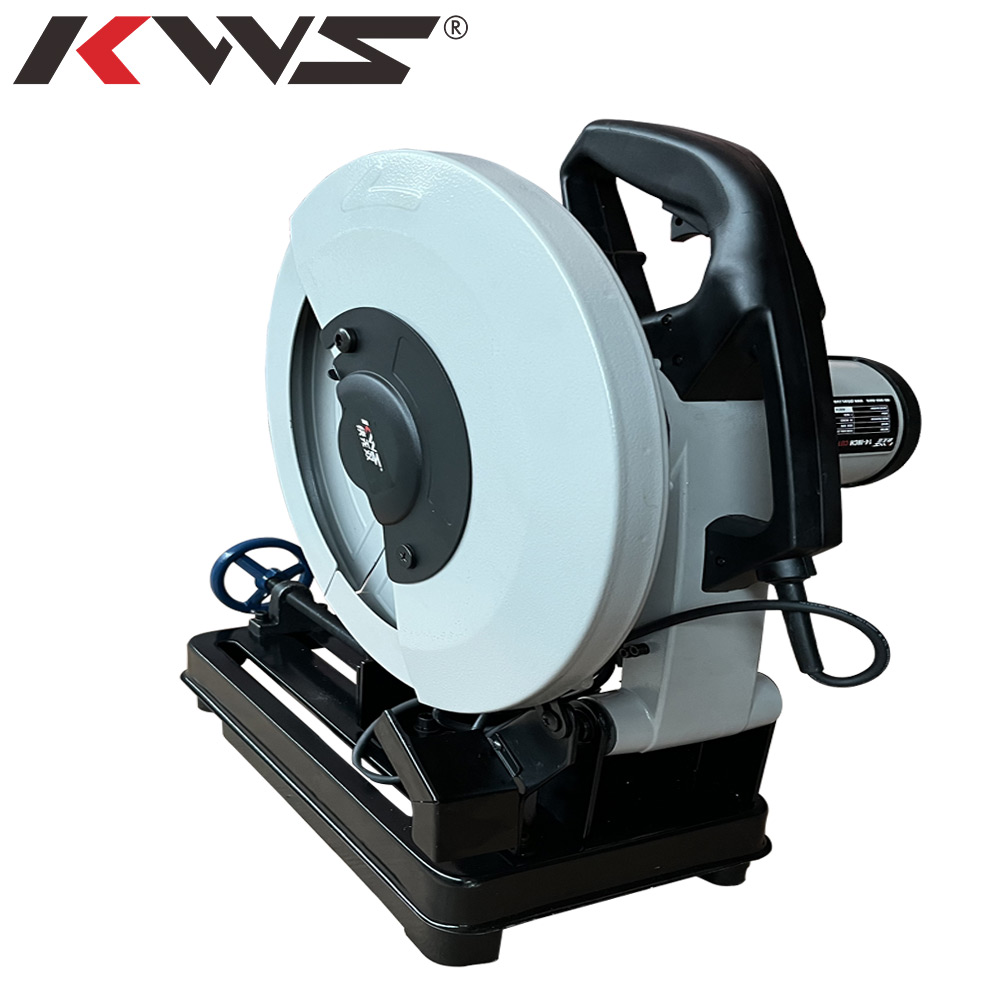

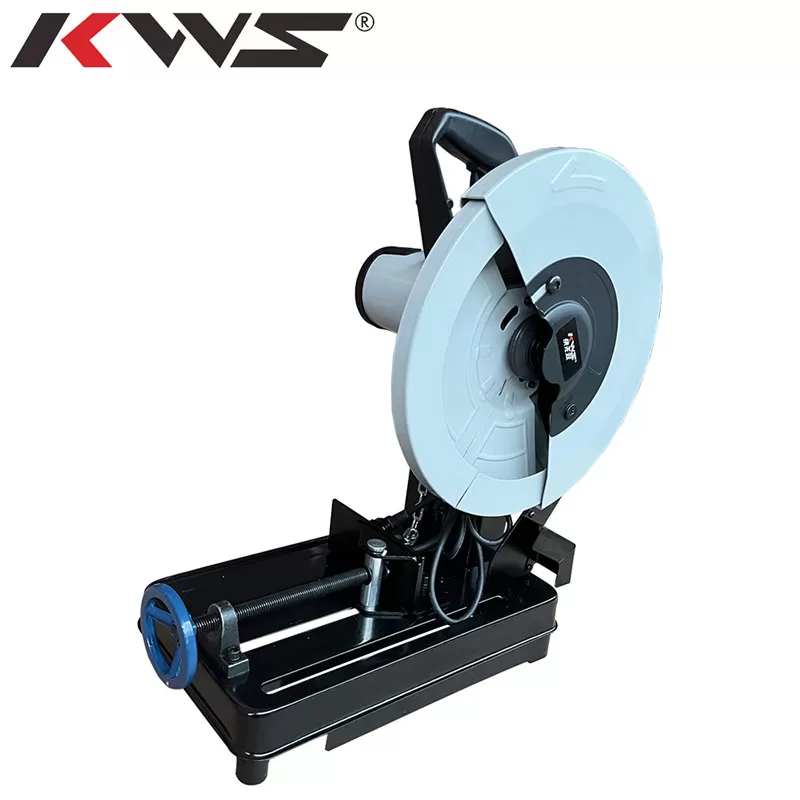

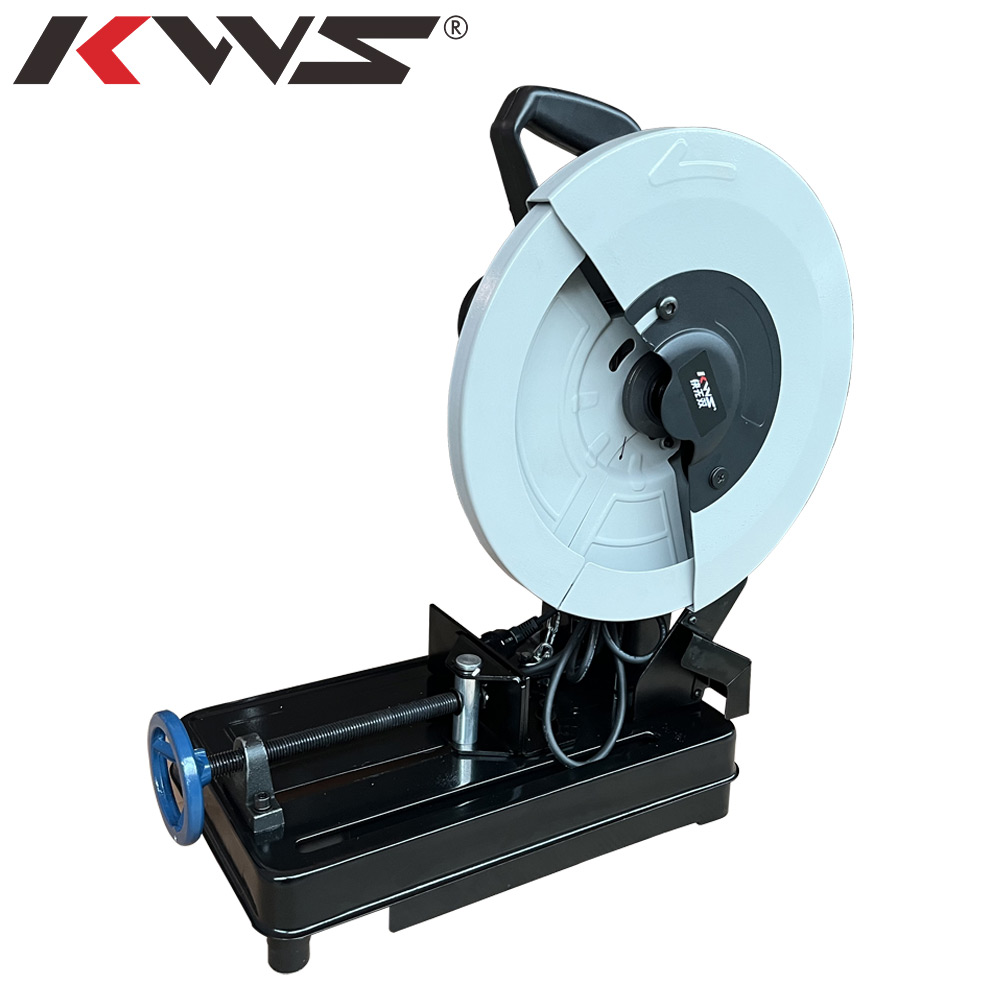

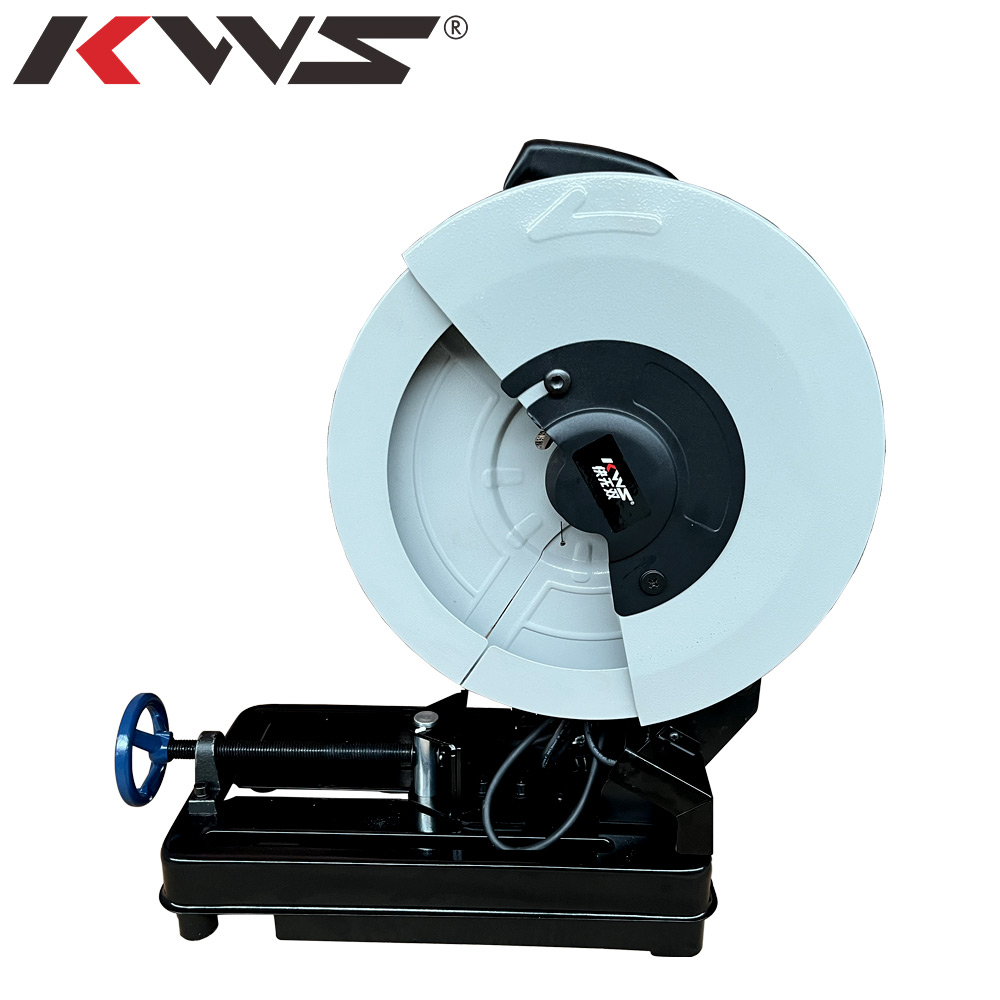

Home > Products > Chop Saw > KWS 935S 14inch Steel Cutting Metal Cut-off Chop Saw Machine 355mm Manual Cold Cut Saw for Metal Profiles
1.355mm (14-Inch) Metal Cutting Blade
The machine is designed for a 355mm metal cutting saw blade with a 25.4mm bore. A compatible TCT cold-cutting blade with the specified dimensions can be used for suitable metal-cutting applications. Always confirm blade thickness, speed rating, material compatibility, and mounting requirements before operation.
2.Cold Cutting with Reduced Heat and Burr Formation
When paired with a suitable TCT metal cutting blade and operated at the recommended feed rate, the machine can help minimize heat-related discoloration and reduce burr formation compared with abrasive cut-off wheels. Actual cutting quality depends on the workpiece material, wall thickness, blade condition, and cutting technique.
3.Lightweight and Portable Design
With a net weight of approximately 26kg, this manual metal cutting saw is convenient to move between work areas. Its compact design makes it a practical choice for mobile construction work, metalworking shops, maintenance tasks, and small fabrication operations. For heavy or oversized workpieces, secure the machine and provide suitable workpiece support.
4.Versatile Metal Profile Cutting
This metal profile cutting machine is suitable for a range of common workpieces when their dimensions fall within the machine's rated capacity
Square tubes, rectangular tubes, and round pipes
Angle steel, channel steel, and round steel bars
Selected I-beams, H-beams, and C-channel profiles
Reinforcing steel bars, subject to blade and machine compatibility
Aluminum tubes and aluminum profiles, using a blade specifically suitable for aluminum
| Product Type | Manual Metal Cut-Off Saw Machine |
| Blade Diameter | 355mm / 14 inches |
| Motor Power | 3500W |
| Power Supply | Single-Phase AC 220V |
| Cutting Angle | 0–45° |
| Blade Bore | 25.4mm |
| Compatible Blade Type | Suitable TCT Metal Cold-Cutting Saw Blade |
| Reference Blade Thickness | 2.0mm; confirm compatibility before ordering |
| Weight | Approx. 23kg |
| Operation | Manual Down-Cutting Feed |
| Main Applications | Metal Profile Cutting, Tube Cutting, Bar Cutting, Miter Cutting |

Applications of the Metal Cut-Off Saw Machine
This 355mm metal cut-off saw machine is suitable for metal fabrication and construction preparation tasks where portable cutting and adjustable angles are required.
Steel Fabrication: Cut angle steel, square tubes, round bars, and compatible structural profiles to the required length.
Metal Frame Manufacturing: Prepare tube and profile ends for frames, brackets, support structures, gates, and other fabricated assemblies.
Construction Sites: Perform on-site metal profile cutting where a compatible single-phase power supply is available.
Aluminum Profile Processing: Cut suitable aluminum tubes and profiles using a dedicated aluminum cutting blade and the recommended cutting procedure.
Small Workshops and Maintenance Departments: Handle routine metal cutting, repair work, and material preparation without installing a large stationary cutting system.
How to Use the Manual Metal Cutting Saw
1.Prepare the workpiece: Measure and mark the required cutting length.
2.Set the cutting angle: Adjust the table to the required angle between 0° and 45°.
3.Secure the material: Clamp the workpiece firmly and provide adequate support.
4.Check the blade and machine: Verify blade compatibility, guarding, clamping, and the power supply before starting.
5.Make the cut: Start the machine and lower the handle gradually, allowing the blade to cut at a controlled feed rate.
6.Complete the operation: Wait for the blade to stop fully before removing the workpiece or making adjustments.
Always follow the manufacturer's operating instructions and use suitable eye, hearing, and other required protective equipment.
Frequently Asked Questions
Q:What is a metal cut-off saw machine used for?
A:A metal cut-off saw machine is used to cut metal bars, tubes, and profiles to specified lengths or angles. This 355mm manual model is intended for suitable metal fabrication, construction, and workshop applications.
Q:Can this 14-inch metal cutting saw cut at 45 degrees?
A:Yes. The machine supports adjustable cutting angles from 0° to 45°. The maximum workpiece size may be lower at 45° than at 0°, so check the rated cutting capacity before processing large profiles.
Q:What blade does this metal cut-off saw use?
A:The machine is designed for a 355mm blade with a 25.4mm bore. Use a compatible TCT metal cold-cutting blade with the correct speed rating and specifications for the material being cut.
Q:Can it cut aluminum profiles?
A:It can be suitable for compatible aluminum profiles when fitted with a blade specifically designed for aluminum. Confirm the permitted workpiece dimensions and cutting procedure before use.
Q:Is this machine suitable for a workshop without three-phase electricity?
A:The stated power supply is single-phase AC 220V, so a three-phase connection is not required. The circuit, wiring, plug, and protective devices must still be rated for the machine's electrical load.
Q:What should I check before purchasing a metal cut-off saw?
A:Confirm the material and profile dimensions, cutting angles, blade specifications, motor power, available voltage, machine weight, rated duty cycle, and spare blade availability. For regular production, request a cutting test using your actual workpiece.
Q:Looking for a Metal Cut-Off Saw Machine Supplier?
A:If you are sourcing a 355mm metal cut-off saw machine for a workshop, fabrication business, or distribution programme, confirm your required voltage, blade specifications, cutting capacity, and target application before ordering.
Contact our team to discuss product specifications, compatible metal cutting blades, spare parts, and quotation requirements.
