How to choose the scoring saw blade on table saw

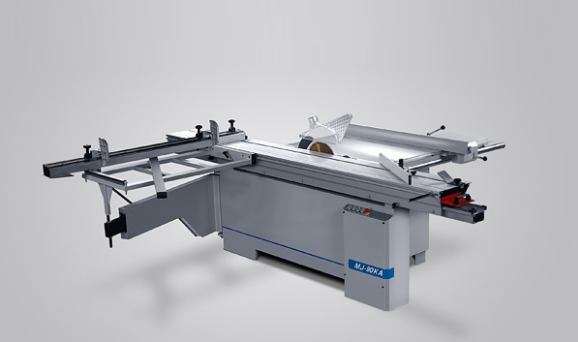

A sliding table saw is a woodworking tool, consisting of a circular saw blade, mounted on an arbor, that is driven by an electric motor. The blade protrudes through the top of a table, which provides support for the material, usually wood, being cut.

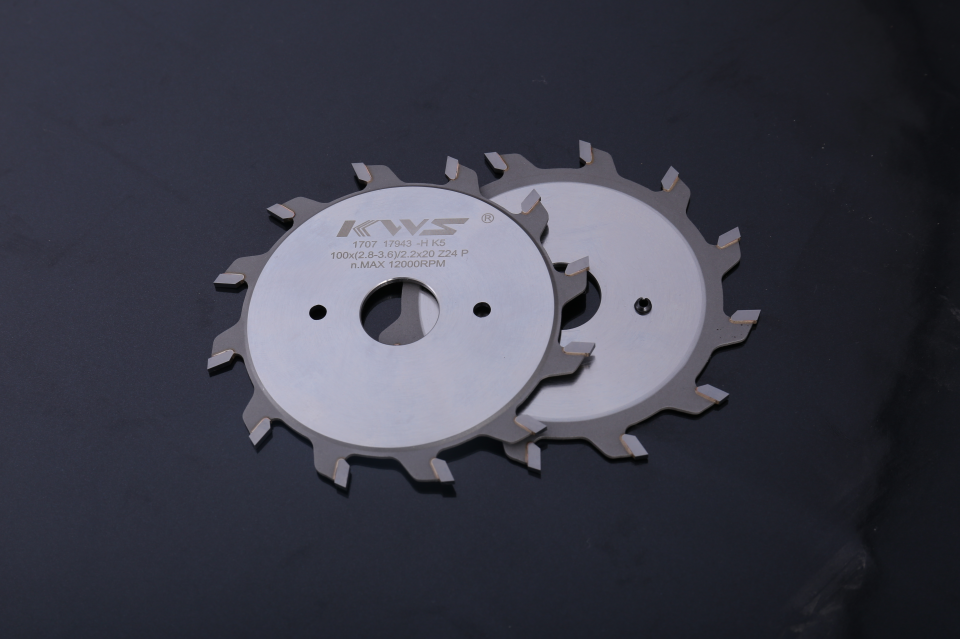

Conical scoring saw blade or adjustable scoring saw blade

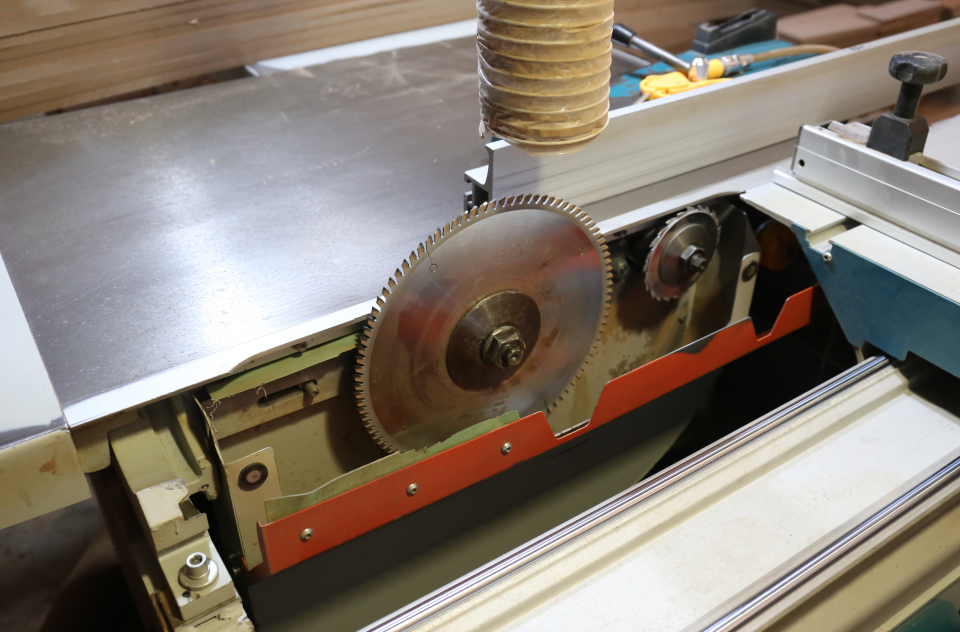

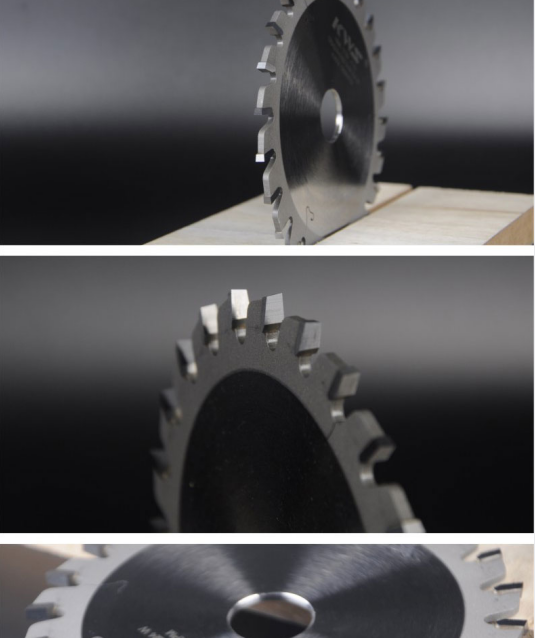

A scoring blade is a small blade located in front of the main blade. It cuts a kerf slightly wider than the main blade and is installed so the teeth point backwards and it counter-rotates, or turns the opposite way. It is set very low, just low enough to nick, or score, the bottom surface of the material being cut. It counter-rotates to ensure a clean cut on the bottom edge of the plywood – the face of the plywood is supported by the core so there is no tearout. conical scoring blade is one piece, adjustable scoring blade is two piece, how to choose? The advantage of conical scoring blade is that it is more cost-effective than adjustable scoring blade, and it is more convenient for equipment to adjust the slot width; The advantage of adjustable scoring blade is that the scribing effect of the unevenly curved board is better, and the adjustable scoring blade is not easy to break the sawtooth. END
